Linea II Glass Outdoor Pavilion

Description

The KGT/Hoklartherm Linea II is a precision-engineered glass outdoor pavilion that brings contemporary European design to any residential or commercial property. With its signature single-slope roofline, anthracite gray aluminum frame, and 4mm tempered safety glass side walls, the Linea II has the clean, architectural profile of a modern extension rather than a conventional outdoor structure — a compact glass room that reads as considered design from every angle. At 66 square feet with a 7’ peak and lockable front door, it is the right structure for a private outdoor retreat, a light-filled studio, a year-round breakfast room, or an intimate entertaining space where form is as important as function.

What gives the Linea II its year-round credibility is the combination of its glazing system and structural engineering. The 4mm tempered safety glass side walls deliver crystal-clear visibility and weather resistance, while the 10mm twin-wall polycarbonate roof manages solar gain and heat loss simultaneously — keeping the interior comfortable across all four seasons without the condensation issues of single-skin alternatives. A 19.5-inch roof overhang provides additional weather protection at the entry, and a 25 lb/sq ft snow load capacity means the structure handles demanding winter conditions without any additional reinforcement. Anchor brackets for foundation mounting, a wide continuous gutter system, and a substantial lockable door handle are all included as standard.

Engineered and manufactured in Germany by KGT, a division of Hoklartherm with over 40 years of precision glass structure manufacturing, the Linea II arrives in anthracite gray — a finish that sits naturally alongside contemporary residential architecture and commercial landscape design alike. Optional shelves and a foundation frame are available as add-ons.

Lead Times & Delivery

In-stock units: Ships within 1–2 weeks of order confirmation, with curbside freight delivery typically 3–7 business days after dispatch.

Custom configurations & out-of-stock units: Because these are built to order at our European facilities, allow 12–16 weeks from confirmed order to delivery, depending on your selections.

Order confirmation: We’ll confirm your specific delivery window in writing within 1–2 business days of your order, and your card won’t be charged until that window is confirmed.

Delivery method: These structures ship via LTL freight to your curb (not inside or to a specific room). A liftgate is provided, but plan for 2–3 people on-site to move the crated materials into place. Please confirm the delivery truck can access your driveway.

Specifications

Frame & Glazing

Frame: Aluminum, architectural grade

Frame Color: Anthracite gray (DB 703)

Side Wall Glazing: 4mm tempered safety glass

Roof Glazing: 10mm twin-wall polycarbonate

Roof Overhang: 19.5 inches

Snow Load Capacity: 25 lbs / sq ft

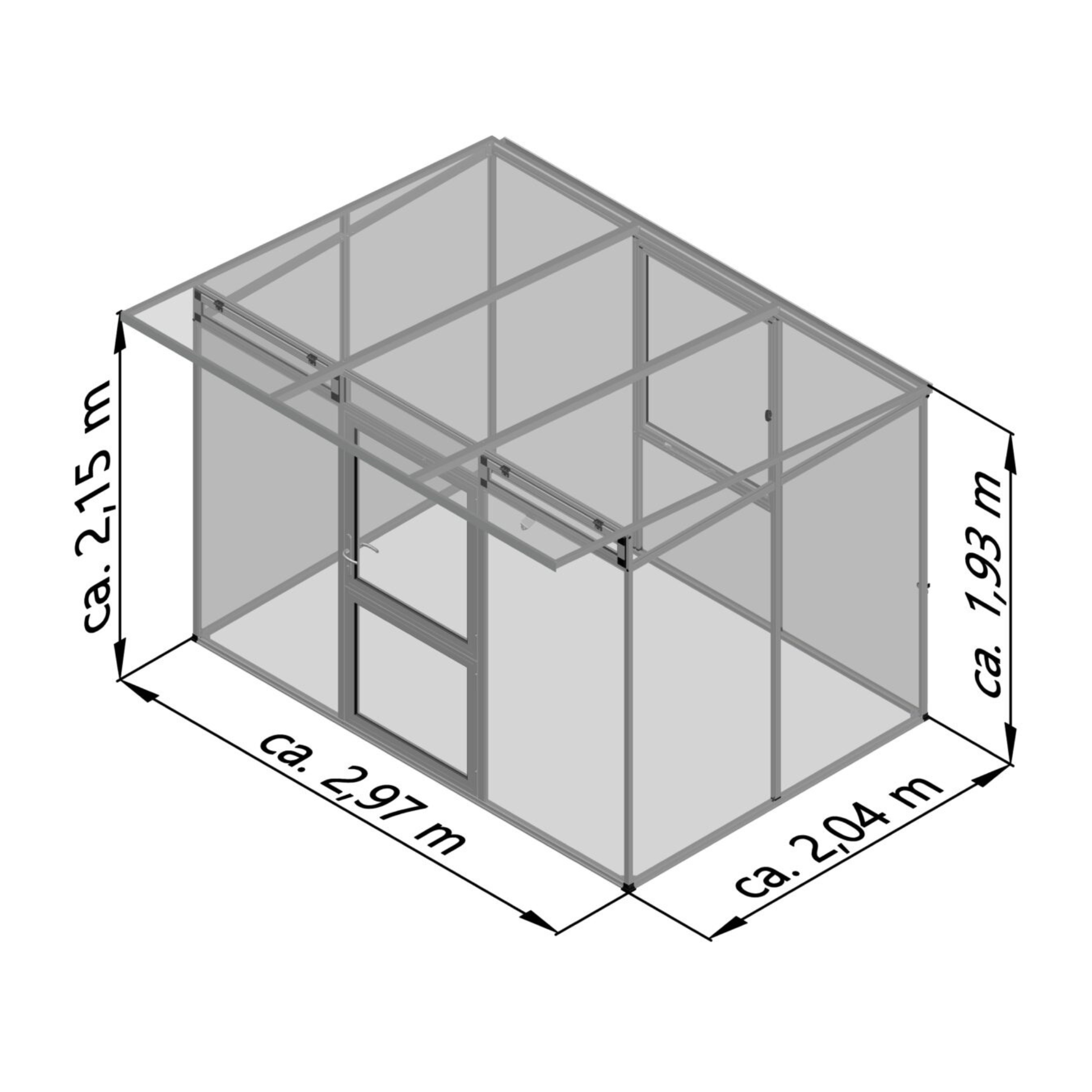

Dimensions

Width: 9’ 9”

Depth: 6’ 8”

Peak Height: 7’

Rear Wall Height: 6’ 4”

Interior Area: 66 sq. ft.

Ventilation & Access

Front Door: Split front door, 35” W × 71” H opening, with premium lockable handle

Rear Window: 35 5/8” × 42 3/4”

Gable Window: 37 3/8” × 6 1/16”

Upper Vents: 2 upper ventilation vents

Inclusions & Pricing

Standard Inclusions: Anchor brackets for foundation mounting, wide continuous gutter system, substantial smooth-action hinges, premium lockable door handle

Optional Add-Ons: Shelves, foundation frame

Price: $8,499

Origin: Manufactured in Germany

Why You’ll Love It

Contemporary Architecture in a Compact Footprint.

The Linea II’s single-slope roofline and anthracite gray frame are unmistakably European in design — the kind of clean, minimal aesthetic that elevates a property rather than just adding to it. At 66 square feet it fits where larger structures can’t, but it never reads as a compromise. It reads as a choice.

Glass Walls That Make the Space Feel Larger Than It Is.

4mm tempered safety glass side walls deliver unobstructed sightlines in every direction, flooding the interior with natural light and making the 66 square foot footprint feel genuinely expansive. From inside, the garden wraps around you. From outside, the structure is transparent, architectural, and striking.

A Roof System Engineered for All Four Seasons.

The 10mm twin-wall polycarbonate roof is not a concession — it’s a deliberate engineering choice. It manages solar gain in summer, retains heat in winter, and eliminates the condensation drip that plagues single-skin glazing. Paired with a 19.5-inch overhang that protects the entry from rain and a 25 lb/sq ft snow load rating, the Linea II handles year-round conditions without modification.

Lockable, Secure, and Built for Daily Use.

A split front door with a premium lockable handle and substantial smooth-action hinges means the Linea II functions as a genuine room, not just a covered space. Lock it, leave it, and return to find it exactly as you left it — whether it’s a private studio, a year-round morning room, or a secure storage pavilion for premium outdoor equipment.

German Engineering. Forty Years of It.

KGT has been manufacturing precision glass structures in Germany for over four decades — and it shows in every detail of the Linea II, from the substantial hinges and gutter system included as standard to the anthracite frame finish that holds its color and its integrity in all weather. This is a structure built to last, not just to sell.

Ready to Anchor, Furnished, and Use.

Anchor brackets for foundation mounting, a continuous gutter system, and all hardware ship with the Linea II as standard. Add the optional foundation frame and shelves and the structure is complete from day one. At $8,499 with German-engineered construction and a lockable glass enclosure, it delivers exceptional value in a category where quality typically costs significantly more.

About the Manufacturer

KGT/Hoklartherm is a German manufacturer with decades of precision engineering behind some of Europe’s most technically advanced glass structures. Their garden pavilions and greenhouse structures are designed for homeowners and commercial properties that demand innovation alongside beauty — combining proprietary glazing systems, architectural-grade aluminum framing, and distinctive contemporary design into structures built to perform in all climates, for decades.
